Tandler Spiral Bevel Gearboxes: Auxiliary Shafts

After touting the capability for over 30 years, Diequa sold their first spiral bevel gearbox with this unique design. Tandler auxiliary gearboxes offer up to 6 shaft extensions for power take-off in the same or perpendicular planes. Some versions are available with hollow shafts and mounting flanges.

Two and Three Way Power Takeoff Gearbox

Specifications

• Power capacities from 1 - 300 HP
• 11 reducing ratios from 1:1 to 6:1
• 4 increasing ratios from 1:1.25 to 1:2
• Standard backlash of 5 - 6 arc minutes
• Reduced backlash available
• Type ZA not available in 1:1

Features & Benefits

• Low Backlash - Hardened and lapped matched set gearing provide smooth, reliable and predictable rotary motion.
• Universal Mounting - Machined housing and tapped holes allow mounting on all six sides.
• Machined Flanges - Provides alignment for perfect shaft centering.
• Bearing Options - Ball bearings for quiet operation, tapered bearings for higher radial load capacity.
• Special Design - Standard models can be modified for maximum design versatility.

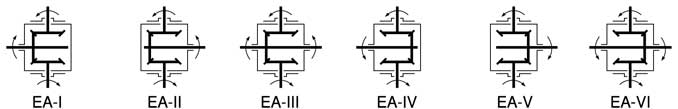

EA Gear Arrangements

Have you ever seen a bevel gearbox with 6 shafts? Gearboxes with 3, 4 and 5 shafts have often been provided. But finding an application needing a shaft coming out of every side of the box had eluded us, until now. Check out the video.
